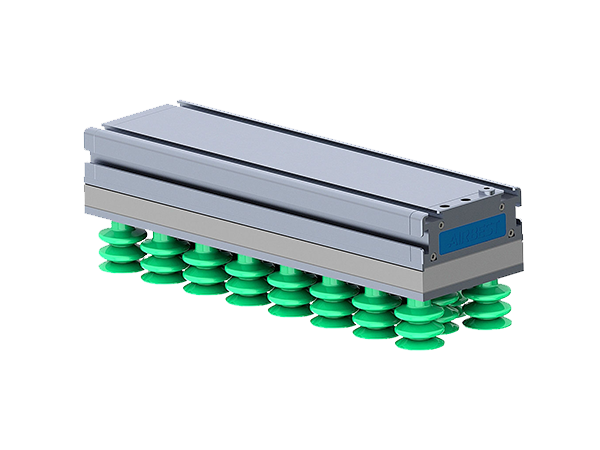

Features

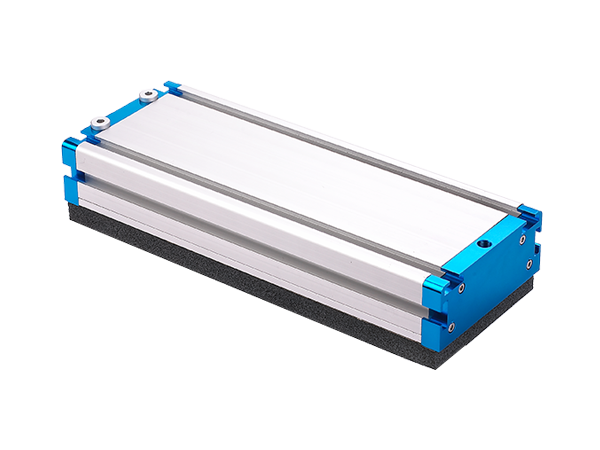

◇ The body is made of aluminum alloy, strong structure and light weight.
◇ Multistage vacuum pump is used as vacuum source, high vacuum flow and short response time.
◇ Integrated with vacuum generation, vacuum filter, vacuum breaking, exhaust silence and built-in check valve.
◇ Built-in check valve can automatically block free suction port toreduce the loss of vacuum flow.
Applications
◇ PCB
◇ Wooden plate
◇ Carton
◇ Metal plate
◇ Plastic
| How to order | ||||
| TXC 120×400 A -V ① ② ③ ④ | ||||
| ① Series | ② Dimension | ③ Adsorbing type | ④ Check valve | |
| TXC | 120×60 120×300 120×400 120×600 120×800 120×1000 120×1200 | A - Sealing gasket(Sponge) type B - Suction cup type （Suction cup model-SPC40S） | Nil - Standard, Without check valve V - With check valve | |
◇Note: Except standard vacuum gripping system TXC and TXM series, AIRBEST also offers tailor-made vacuum gripping system. If any tailor-made demand,
please consult with AIRBEST.
| Selection | ||||
| Model/ Specification | A | A-V | B | B-V |
| TXC120×60 | ● | ● | - | - |
| TXC120×300 | ● | ● | ● | ● |
| TXC120×400 | ● | ● | ● | ● |
| TXC120×600 | ● | ● | ● | ● |
| TXC120×800 | ● | ● | ● | ● |
| TXC120×1000 | ○ | ○ | ○ | ○ |
| TXC120×1200 | ○ | ○ | ○ | ○ |
◇Note: "●"- standard, in stock. "○"-selective,no stock. "—" -unavailable.
| Technical parameters | ||||||||||
| Model | Air supply pressurebar(bar) | Max. vacuum level (-kPa) | Max. vacuum flow (NL/min) | Max. Air consumption (NL/min) | Suction force (N) | weightkg | Recommended hose dia.(mm) | |||
| A | A-V | B | B-V | |||||||
| TXC120×60 | 6.0 | 83.0 | 150 | 85 | 68 | 0.5 | 0.4 | - | - | 8 |
| TXC120×300 | 6.0 | 75.0 | 640 | 215 | 516 | 2.5 | 2.7 | 3.5 | 3.6 | 8 |
| TXC120×400 | 6.0 | 75.0 | 640 | 215 | 689 | 2.8 | 3.4 | 4.5 | 4.6 | 8 |
| TXC120×600 | 6.0 | 75.0 | 1250 | 430 | 1,030 | 3.5 | 5.1 | 6.5 | 6.7 | 8 |
| TXC120×800 | 6.0 | 75.0 | 1250 | 430 | 1,378 | 4.2 | 6.5 | 8.5 | 8.7 | 8 |
| TXC120×1000 | 6.0 | 75.0 | 1950 | 830 | 1,949 | 4.6 | 7.1 | 10.5 | 10.7 | 10 |
| TXC120×1200 | 6.0 | 75.0 | 1950 | 830 | 2,260 | 5.6 | 7.5 | 11.2 | 11.5 | 10 |
◇Note:Testing vacuum level -60kPa.The data of suction force as above are figured out in the condition that the vacuum gripper is fully covered by
a rigid airtight workpiece, and without including safety factor. Working temperature:-20~80℃.

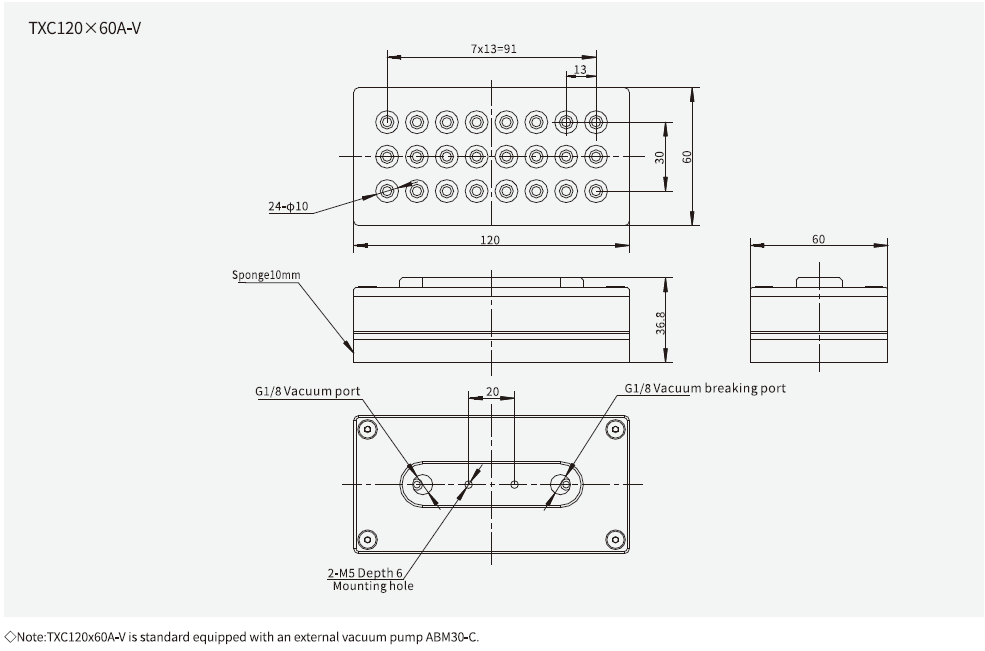

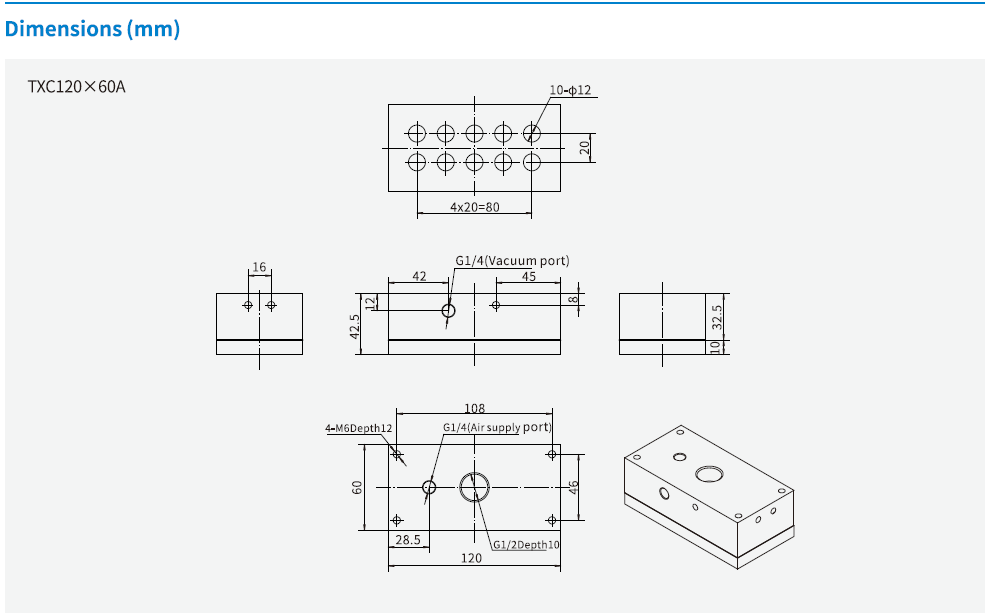

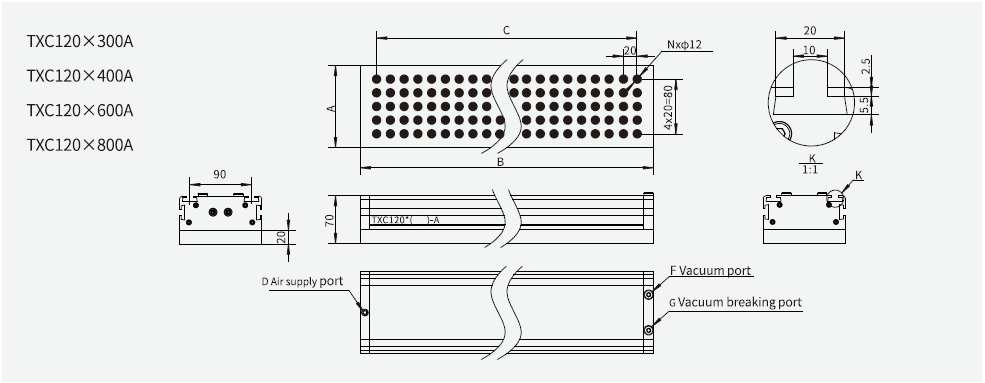

| Model/Size | A | B | C | D | F | G | N(suction hole number) |
| TXC120×300A | 120 | 328 | 280 | G1/8 | G1/8 | G1/8 | 75 |
| TXC120×400A | 120 | 428 | 380 | G1/8 | G1/8 | G1/8 | 100 |
| TXC120×600A | 120 | 628 | 580 | G1/8 | G1/8 | G1/8 | 150 |
| TXC120×800A | 120 | 828 | 780 | G1/8 | G1/8 | G1/8 | 200 |

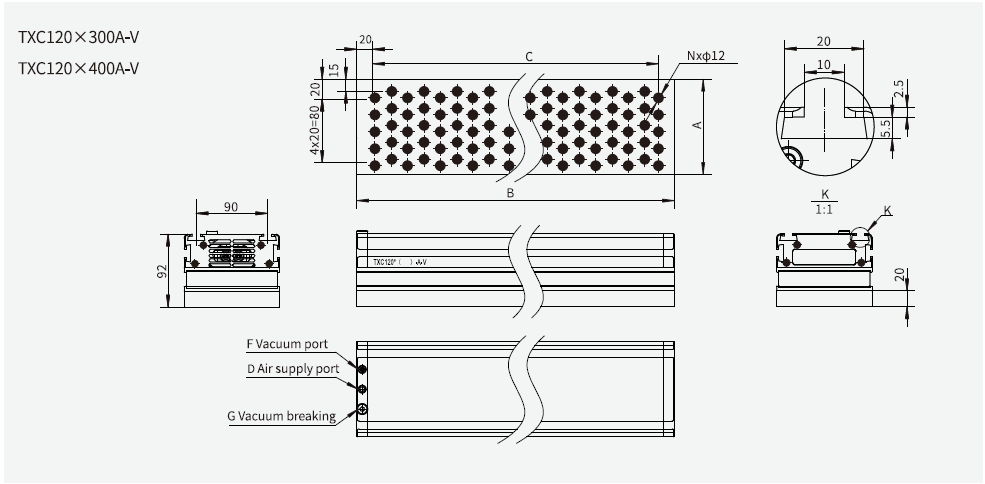

| Model/Size | A | B | C | D | F | G | N(suction hole number) |
| TXC120×300A-V | 120 | 300 | 260 | G1/8 | G1/8 | G1/8 | 70 |
| TXC120×400A-V | 120 | 400 | 360 | G1/8 | G1/8 | G1/8 | 95 |

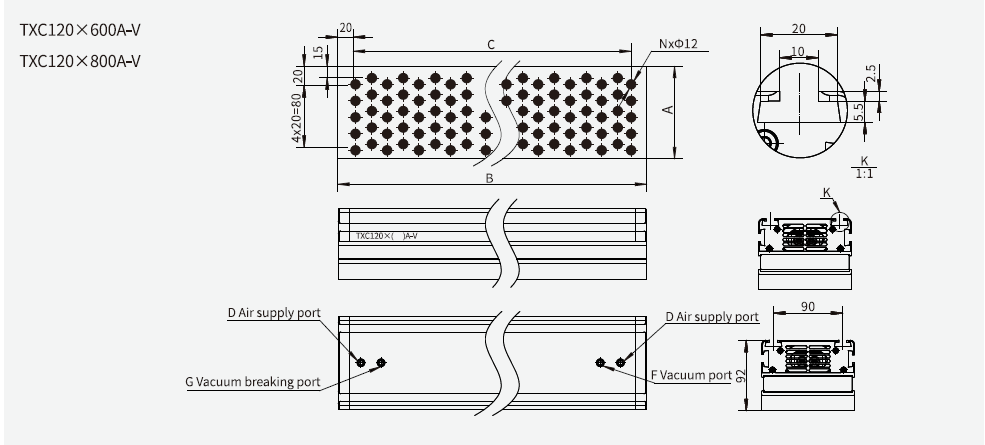

| Model/Size | A | B | C | D | F | G | N(suction hole number) |
| TXC120×600A-V | 120 | 600 | 560 | Φ8 | Φ8 | Φ8 | 145 |
| TXC120×800A-V | 120 | 800 | 760 | Φ8 | Φ8 | Φ8 | 195 |

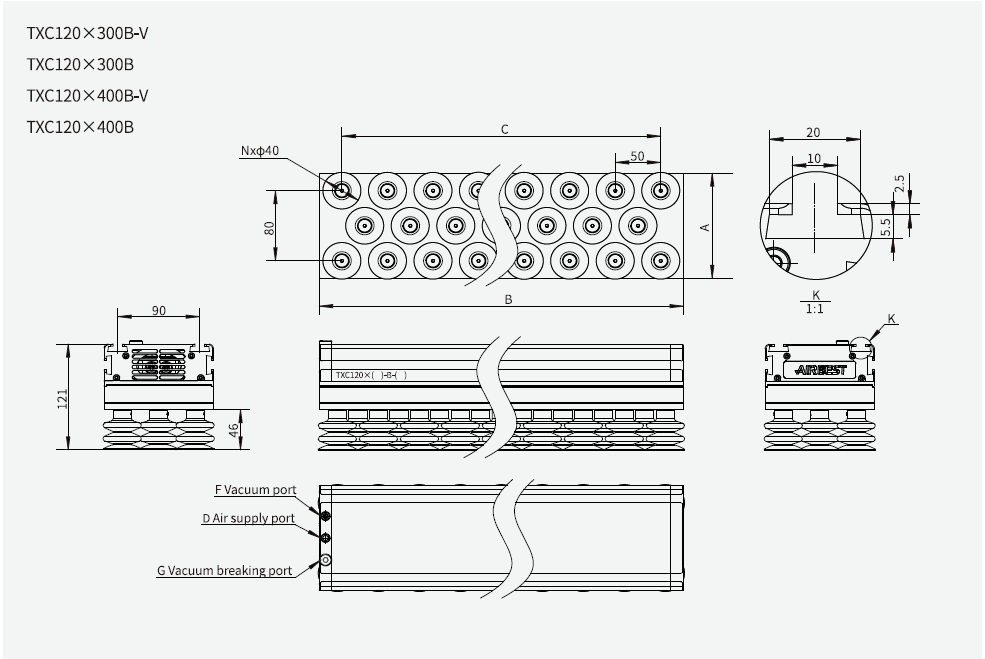

| Model/Size | A | B | C | D | F | G | N(suction hole number) |
| TXC120×300B-V | 120 | 300 | 250 | G1/8 | G1/8 | G1/8 | 17 |
| TXC120×300B | 120 | 300 | 250 | G1/8 | G1/8 | G1/8 | 17 |
| TXC120×400B-V | 120 | 400 | 350 | G1/8 | G1/8 | G1/8 | 23 |
| TXC120×400B | 120 | 400 | 350 | G1/8 | G1/8 | G1/8 | 23 |

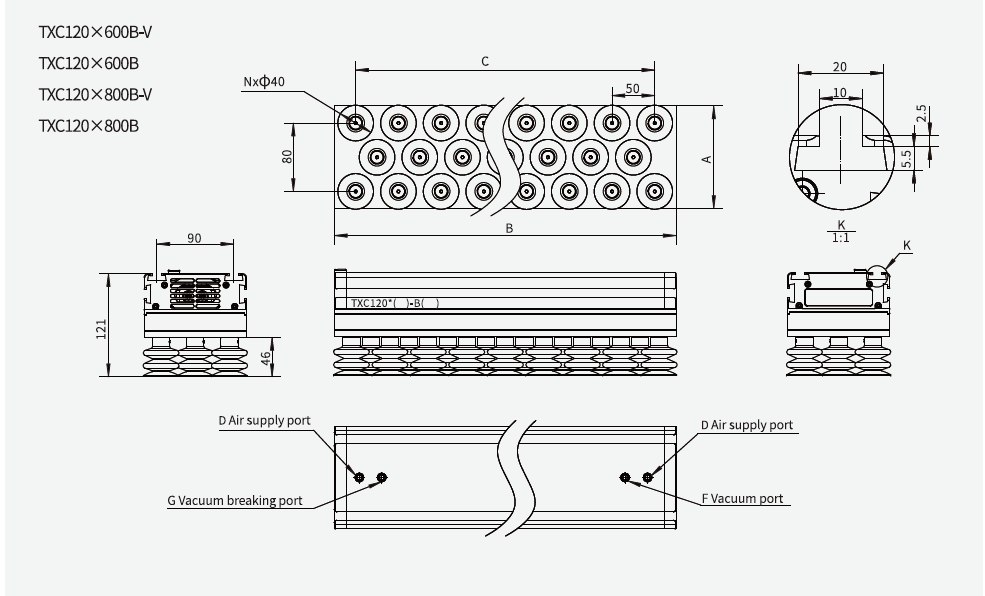

| Model/Size | A | B | C | D | F | G | N(suction hole number) |
| TXC120×600B-V | 120 | 600 | 550 | Φ8 | Φ8 | Φ8 | 35 |
| TXC120×600B | 120 | 600 | 550 | Φ8 | Φ8 | Φ8 | 35 |
| TXC120×800B-V | 120 | 800 | 750 | Φ8 | Φ8 | Φ8 | 47 |
| TXC120×800B | 120 | 800 | 750 | Φ8 | Φ8 | Φ8 | 47 |
◇Note:φ8 means hose diameter. For dimension of TXC120x1000 and TXC120x1200,please consult with AIRBEST.
| Spare parts | |||||||
| Item | Model | Applicable vacuum gripping system | |||||
| Sponge | TXC120×60NF | TXC120×60A | |||||
| TXC120×300NF | TXC120×300A | ||||||
| TXC120×400NF | TXC120×400A | ||||||
| TXC120×600NF | TXC120×600A | ||||||
| TXC120×800NF | TXC120×800A | ||||||
| TXC120×300NF-V | TXC120×300A-V | ||||||
| TXC120×400NF -V | TXC120×400A -V | ||||||
| TXC120×600NF-V | TXC120×600A-V | ||||||
| TXC120×800NF-V | TXC120×800A-V | ||||||
